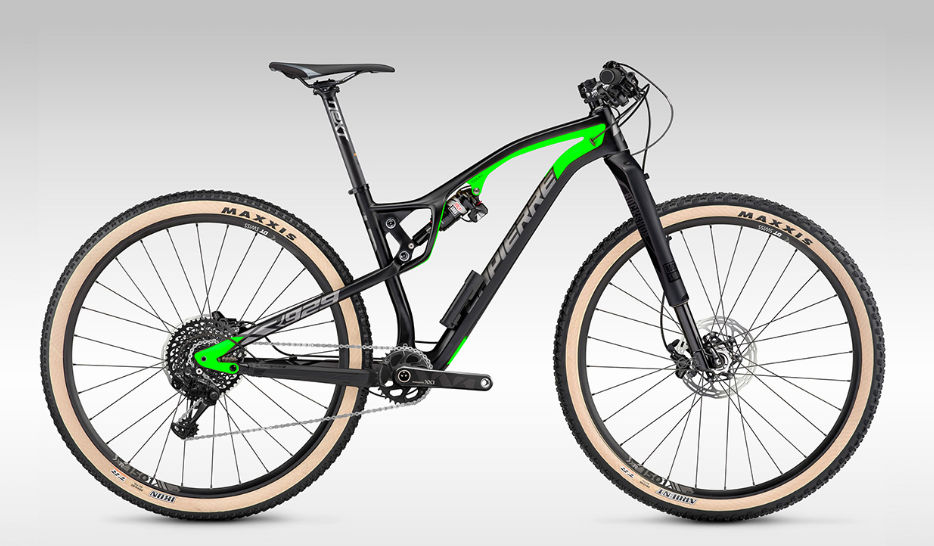

2017 Lapierre XR MKII geometry
Full frame geometry for the 2017 Lapierre XR MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 587 | 437 | 74.5 | 69 | 100 | 600 | 430 | 40 | 441 | 1141 | 51 |
| S | 587 | 412 | 74.5 | 69 | 100 | 575 | 390 | 40 | 441 | 1116 | 51 |
| L | 605 | 452 | 74.5 | 69 | 120 | 620 | 470 | 40 | 441 | 1163 | 51 |
| XL | 605 | 477 | 74.5 | 69 | 120 | 645 | 510 | 40 | 441 | 1188 | 51 |
All measurements in millimetres unless marked (°) for angles.
