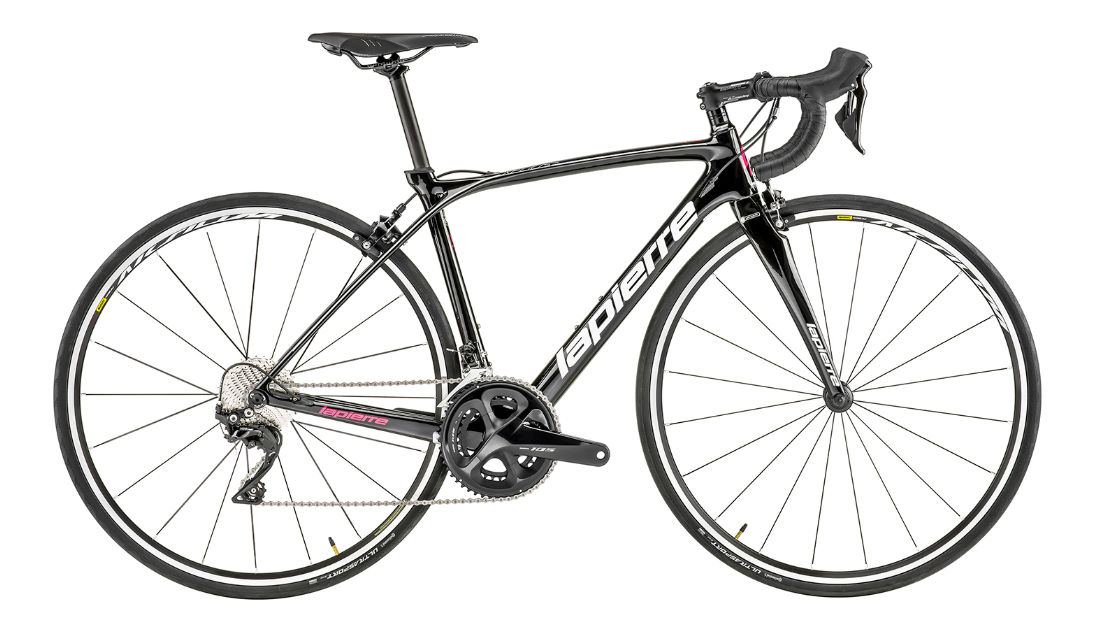

2017 Lapierre Xelius SL Lady geometry
Full frame geometry for the 2017 Lapierre Xelius SL Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 509 | 359 | 74 | 70.5 | 115 | 505 | 430 | 70 | 405 | 966 | 50 |
| XS | 520 | 371 | 74 | 72 | 125 | 520 | 460 | 67 | 405 | 970 | 50 |
| S | 525 | 374 | 73 | 72 | 130 | 535 | 490 | 67 | 405 | 975 | 50 |
All measurements in millimetres unless marked (°) for angles.
