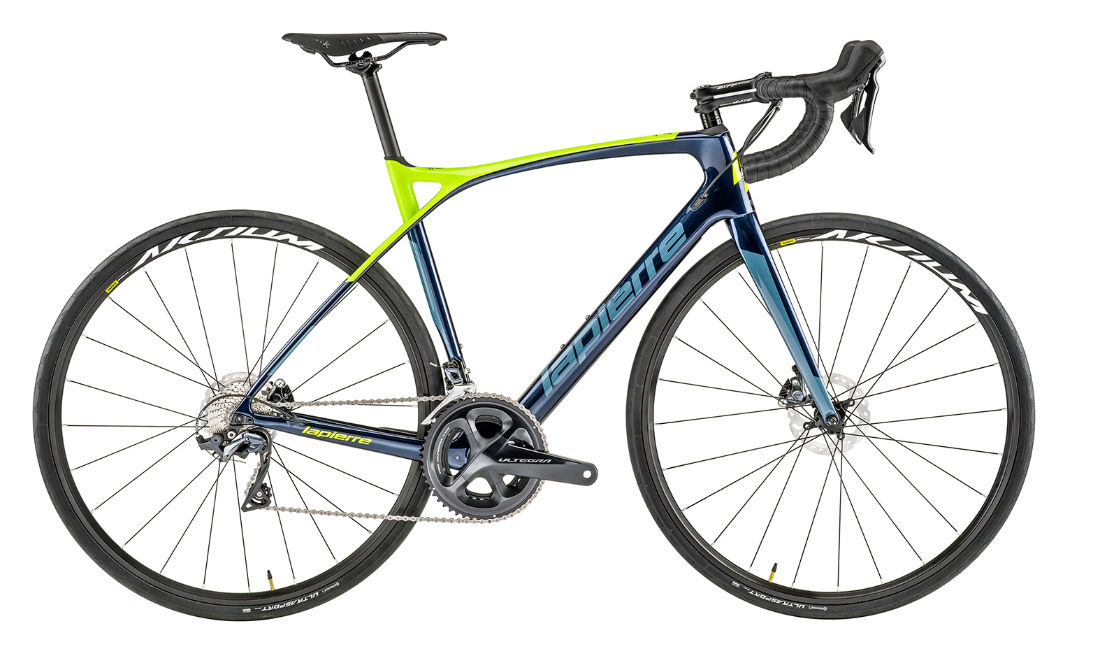

2019 Lapierre Xelius SL Disc MK II geometry
Full frame geometry for the 2019 Lapierre Xelius SL Disc MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 501 | 376 | 74 | 72 | 105 | 520 | 460 | 67 | 405 | — | — |
| S | 516 | 377 | 73 | 72 | 120 | 535 | 490 | 67 | 405 | — | — |
| M | 538 | 385 | 73 | 73 | 140 | 550 | 520 | 67 | 405 | — | — |
| L | 557 | 394 | 72.5 | 73 | 160 | 570 | 550 | 67 | 405 | — | — |
| XL | 580 | 402 | 72 | 74 | 180 | 590 | 580 | 67 | 405 | — | — |
| XXL | 609 | 412 | 72 | 74 | 210 | 610 | 610 | 67 | 415 | 1029 | 50 |
All measurements in millimetres unless marked (°) for angles.
