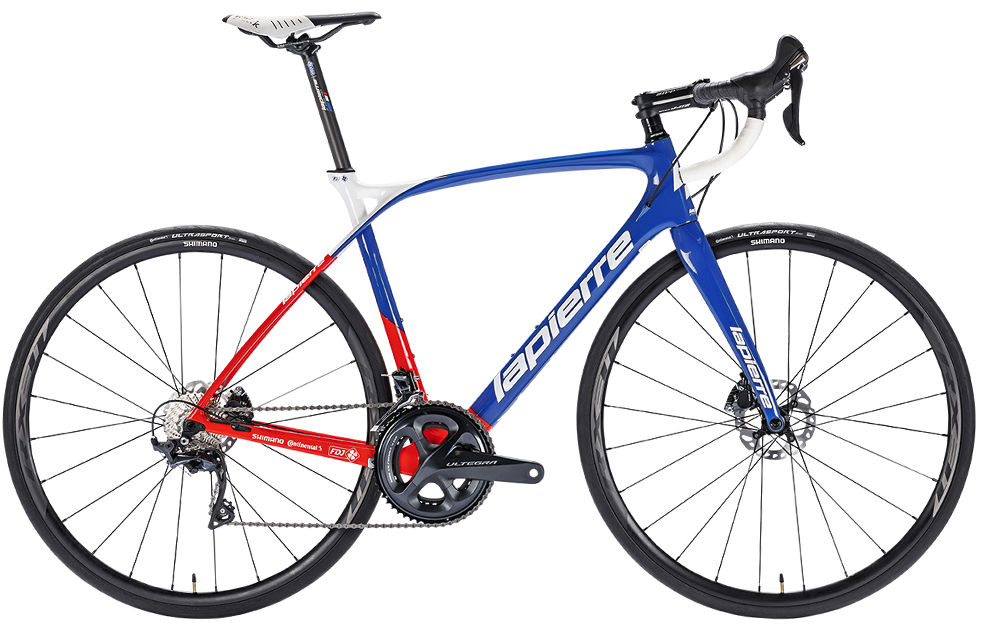

2017 Lapierre Xelius SL Disc MK I geometry
Full frame geometry for the 2017 Lapierre Xelius SL Disc MK I, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 525 | 374 | 73 | 72 | 130 | 535 | 490 | 67 | 415 | 985 | 50 |
| M | 548 | 383 | 73 | 73 | 150 | 550 | 520 | 67 | 415 | 991 | 50 |
| L | 567 | 391 | 72.5 | 73 | 170 | 570 | 550 | 67 | 415 | 1006 | 50 |
| XL | 590 | 398 | 72 | 74 | 190 | 590 | 580 | 67 | 415 | 1010 | 50 |
| XXL | 599 | 415 | 72 | 74 | 200 | 610 | 610 | 67 | 405 | — | — |
All measurements in millimetres unless marked (°) for angles.
