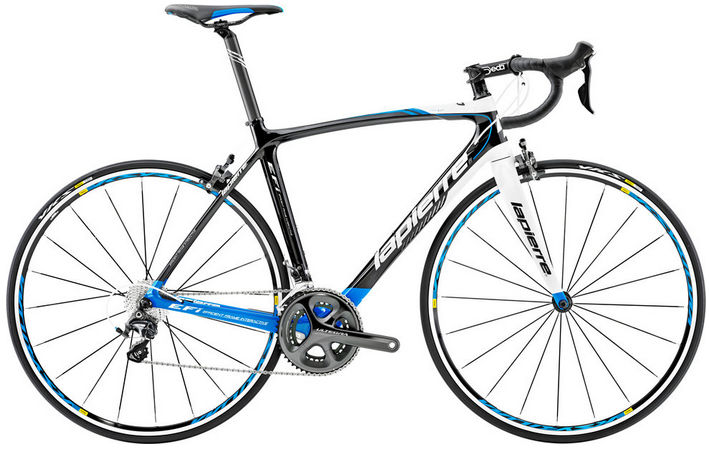

2013 Lapierre Xelius EFi geometry

Name: 2013 Lapierre Xelius EFi
Brand: Lapierre

Full frame geometry for the 2013 Lapierre Xelius EFi, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
XS	513	373	74	72	115	520	460	67	408	43
S	527	374	73	72	130	535	490	67	408	43
M	550	382	73	73	150	550	520	67	408	43
L	569	396	73	73	170	570	550	67	408	43
XL	592	398	72	74	190	590	580	67	408	43

All measurements in millimetres unless marked (°) for angles.
