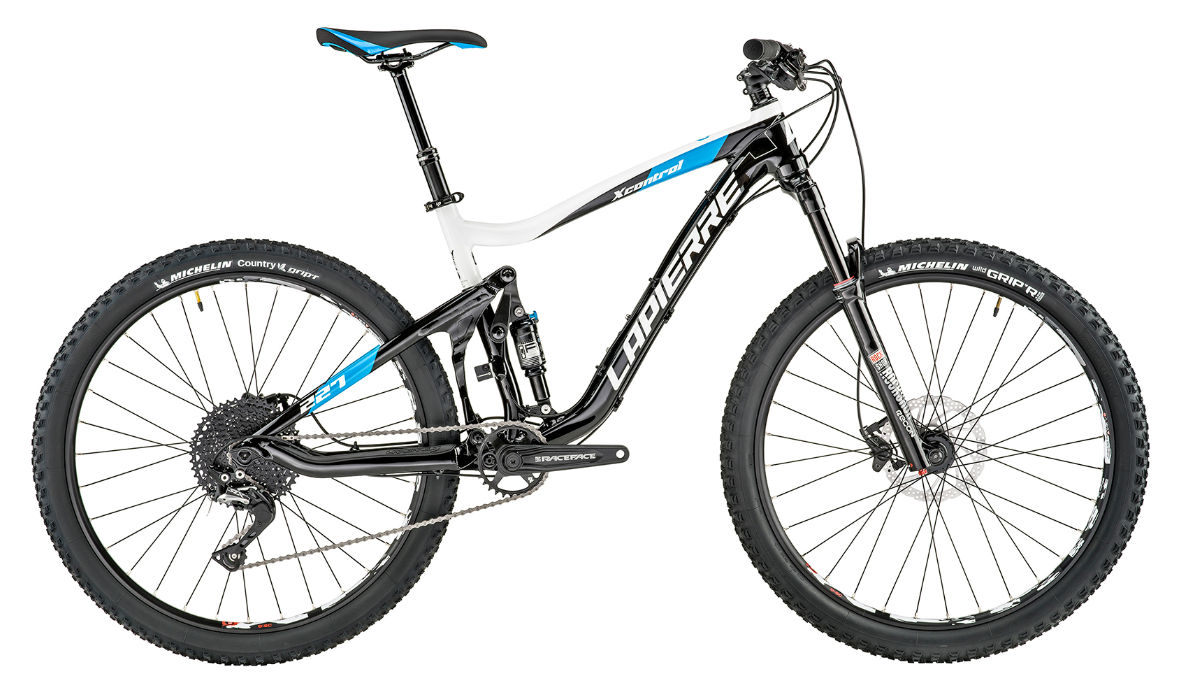

2019 Lapierre X-Control geometry
Full frame geometry for the 2019 Lapierre X-Control, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 572 | 396 | 73.5 | 68 | 110 | 565 | 400 | 16 | 435 |
| M | 581 | 418 | 73.5 | 68 | 120 | 590 | 440 | 16 | 435 |
| L | 590 | 435 | 73.5 | 68 | 130 | 610 | 480 | 16 | 435 |
| XL | 609 | 455 | 73.5 | 68 | 150 | 635 | 530 | 16 | 435 |
All measurements in millimetres unless marked (°) for angles.
