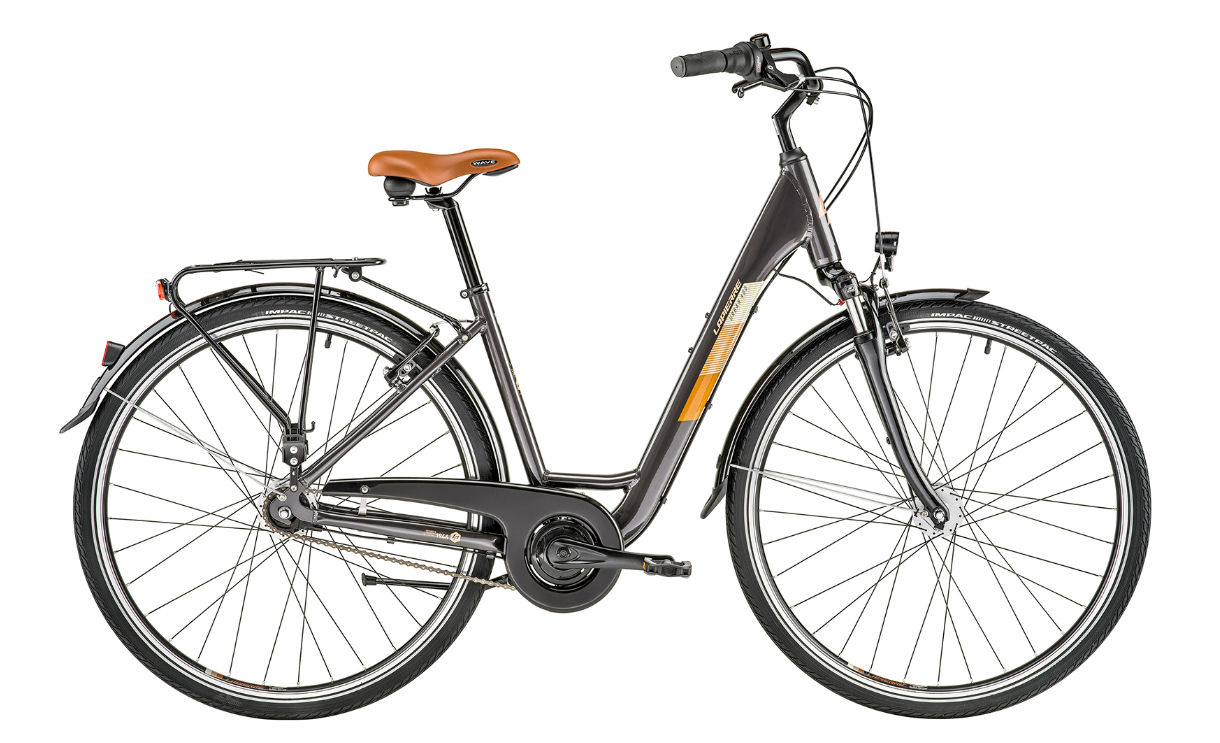

2019 Lapierre Urban geometry
Full frame geometry for the 2019 Lapierre Urban, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 505 | 401 | 72 | 70 | 150 | 565 | 410 | 45 | 450 |
| L | 539 | 429 | 71 | 70.5 | 175 | 615 | 510 | 62 | 467 |
| M | 539 | 414 | 71 | 70.5 | 175 | 600 | 460 | 62 | 467 |
All measurements in millimetres unless marked (°) for angles.
