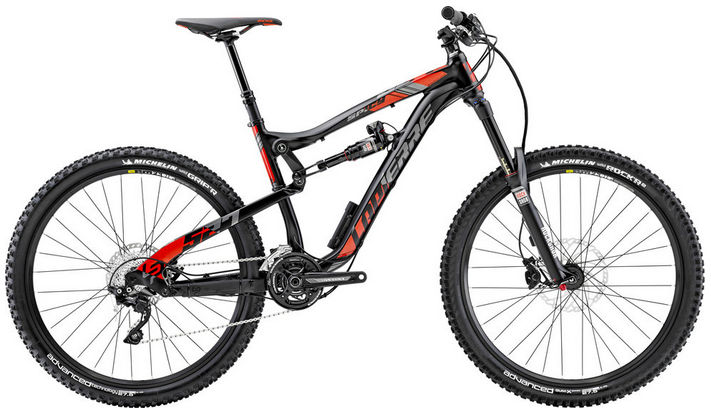

2015 Lapierre · MD
2015 Lapierre Spicy geometry
Full frame geometry for the 2015 Lapierre Spicy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M | 599 | 428 | 73.5 | 66.5 | 110 | 605 | 440 | 8 | 430 | 40 |
| S | 599 | 403 | 73.5 | 66.5 | 110 | 580 | 400 | 8 | 430 | 40 |
| L | 622 | 441 | 73.5 | 66.5 | 135 | 625 | 480 | 8 | 430 | 40 |
| XL | 622 | 466 | 73.5 | 66.5 | 135 | 650 | 520 | 8 | 430 | 40 |
All measurements in millimetres unless marked (°) for angles.
