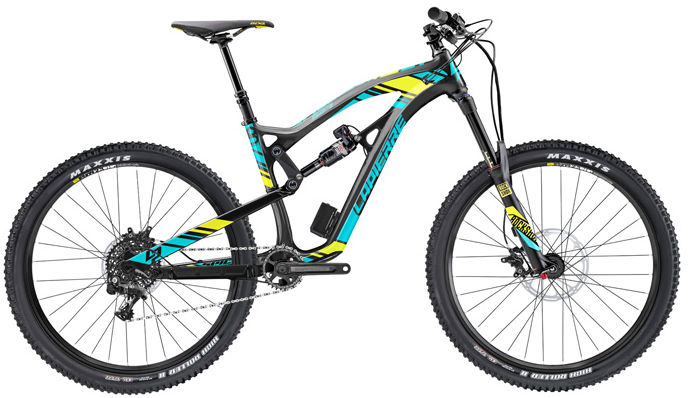

2016 Lapierre Spicy MKII C geometry
Full frame geometry for the 2016 Lapierre Spicy MKII C, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 593 | 421 | 75 | 66 | 110 | 580 | 390 | 5 | 435 |
| M | 602 | 444 | 75 | 66 | 120 | 605 | 430 | 5 | 435 |
| L | 611 | 461 | 75 | 66 | 130 | 625 | 460 | 5 | 435 |
| XL | 620 | 484 | 75 | 66 | 140 | 650 | 500 | 5 | 435 |
All measurements in millimetres unless marked (°) for angles.
