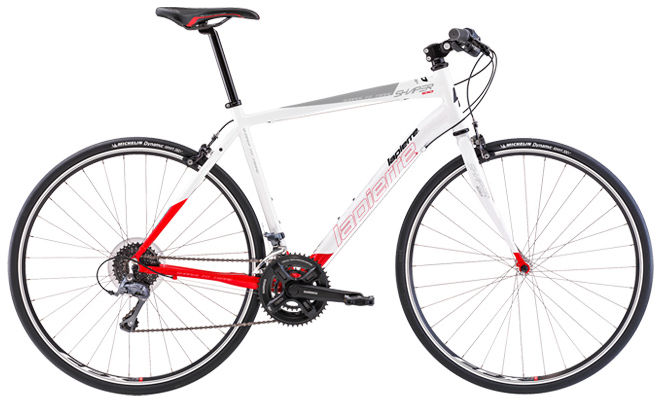

2015 Lapierre Shaper Aluminium geometry
Full frame geometry for the 2015 Lapierre Shaper Aluminium, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 543 | 379 | 74.5 | 71.5 | 125 | 530 | 440 | 68 | 420 |
| M | 564 | 383 | 73.5 | 72 | 145 | 550 | 480 | 68 | 420 |
| L | 590 | 395 | 73 | 72.5 | 170 | 575 | 520 | 68 | 420 |
| XL | 620 | 410 | 72.5 | 73 | 200 | 605 | 560 | 68 | 420 |
All measurements in millimetres unless marked (°) for angles.
