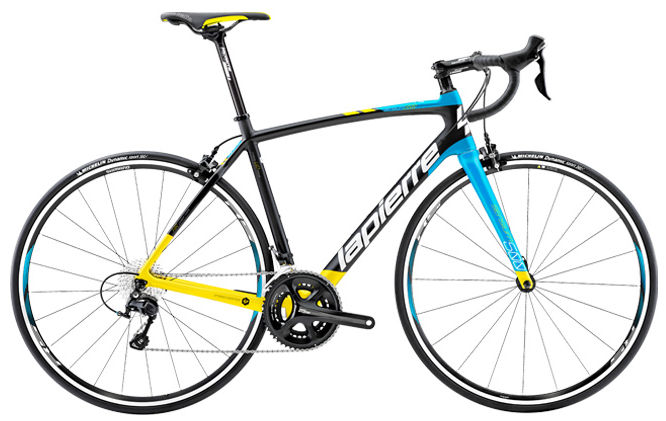

2015 Lapierre Sensium MKII geometry
Full frame geometry for the 2015 Lapierre Sensium MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 522 | 375 | 74.5 | 71 | 125 | 520 | 460 | 72 | 412 |
| S | 543 | 374 | 74 | 71.5 | 145 | 530 | 490 | 72 | 412 |
| M | 560 | 379 | 73.5 | 72 | 165 | 545 | 520 | 69 | 412 |
| L | 579 | 388 | 73 | 72 | 185 | 565 | 550 | 69 | 412 |
| XL | 603 | 395 | 72.5 | 72.5 | 210 | 585 | 580 | 67 | 412 |
| XXL | 624 | 397 | 72 | 73 | 230 | 600 | 610 | 67 | 412 |
All measurements in millimetres unless marked (°) for angles.
