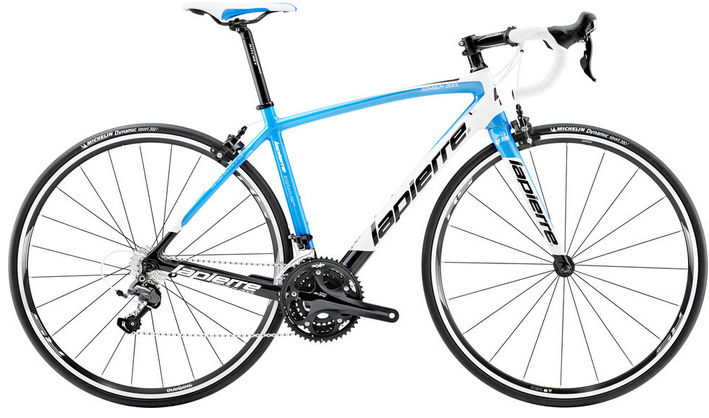

2013 Lapierre Sensium Lady geometry
Full frame geometry for the 2013 Lapierre Sensium Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 523 | 370 | 74.5 | 71 | 120 | 515 | 440 | 75 | 412 | 43 |
| M | 544 | 374 | 74 | 71.5 | 140 | 530 | 480 | 75 | 412 | 43 |
| L | 565 | 378 | 73.5 | 72 | 160 | 545 | 520 | 75 | 412 | 43 |
All measurements in millimetres unless marked (°) for angles.
