2018 Lapierre · RD

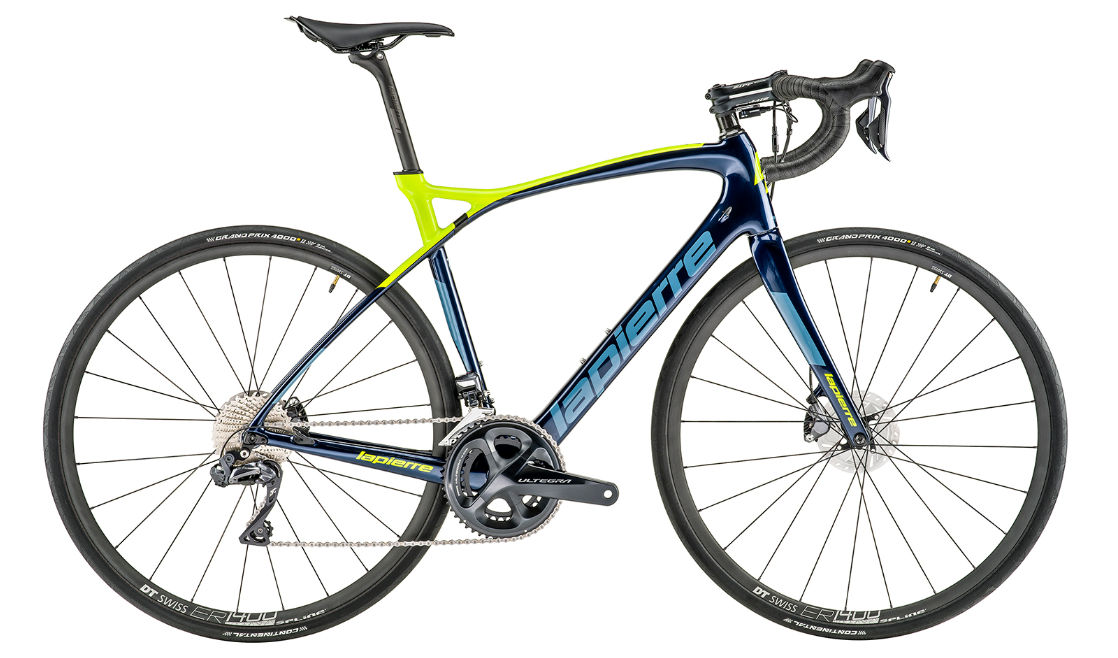

2018 Lapierre Pulsium Ultimate/SL Disc geometry
Full frame geometry for the 2018 Lapierre Pulsium Ultimate/SL Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 374 | 74.5 | 71 | 125 | 520 | 460 | 72 | 412 | 981 |
| S | 546 | 373 | 74 | 71.5 | 145 | 530 | 490 | 72 | 412 | 983 |
| M | 564 | 378 | 73.5 | 72 | 165 | 545 | 520 | 69 | 412 | 990 |
| L | 583 | 387 | 73 | 72 | 185 | 565 | 550 | 69 | 412 | 1005 |
| XL | 606 | 394 | 72.5 | 72.5 | 210 | 585 | 580 | 67 | 412 | 1015 |
All measurements in millimetres unless marked (°) for angles.
