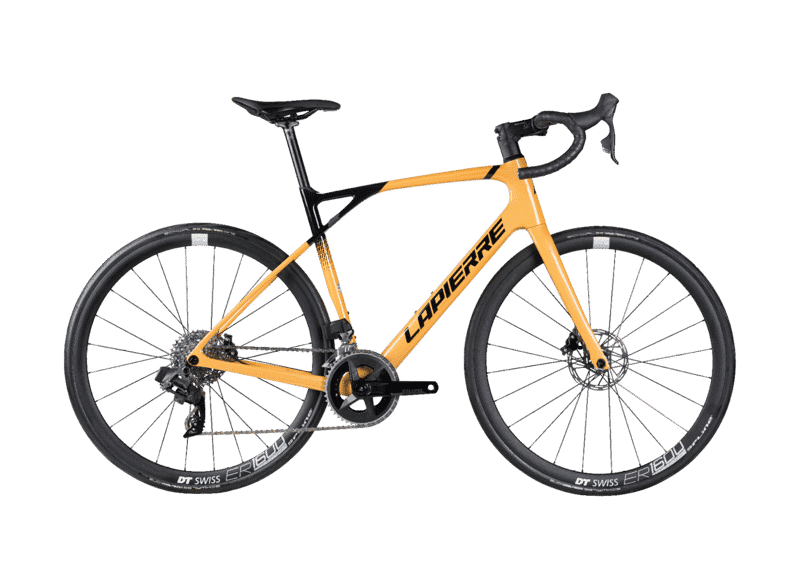

2023 Lapierre Pulsium SAT geometry
Full frame geometry for the 2023 Lapierre Pulsium SAT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 536 | 371 | 74.5 | 71 | 135 | 520 | 460 | 72 | 415 | 50 |
| S | 557 | 375 | 74 | 71.5 | 155 | 535 | 490 | 72 | 415 | 50 |
| M | 575 | 380 | 73.5 | 72 | 175 | 550 | 520 | 69 | 415 | 50 |
| L | 594 | 388 | 73 | 72 | 195 | 570 | 550 | 69 | 415 | 50 |
| XL | 618 | 395 | 72.5 | 72.5 | 220 | 590 | 580 | 67 | 415 | 50 |
All measurements in millimetres unless marked (°) for angles.
