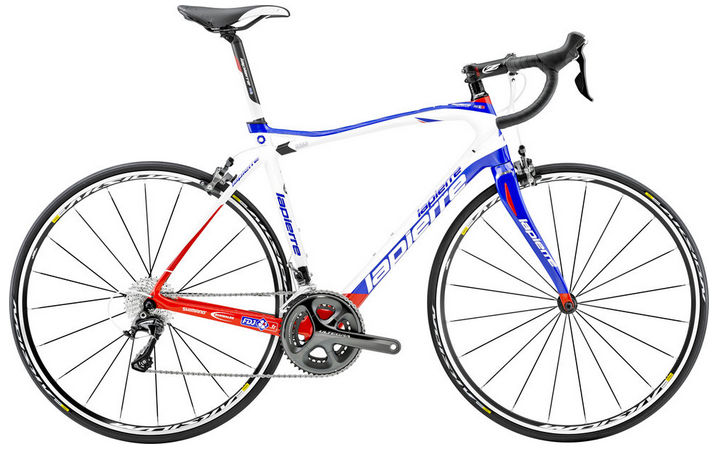

2015 Lapierre Pulsium MKI geometry

Name: 2015 Lapierre Pulsium MKI
Brand: Lapierre

Full frame geometry for the 2015 Lapierre Pulsium MKI, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Chainstay (mm)	Fork rake (mm)
XS	522	375	74.5	71	125	520	460	72	412	50
S	543	374	74	71.5	145	530	490	72	412	50
M	560	379	73.5	72	165	545	520	69	412	50
L	579	388	73	72	185	565	550	69	412	50
XL	603	395	72.5	72.5	210	585	580	67	412	50
XXL	624	397	72	73	230	600	610	67	412	50

All measurements in millimetres unless marked (°) for angles.
