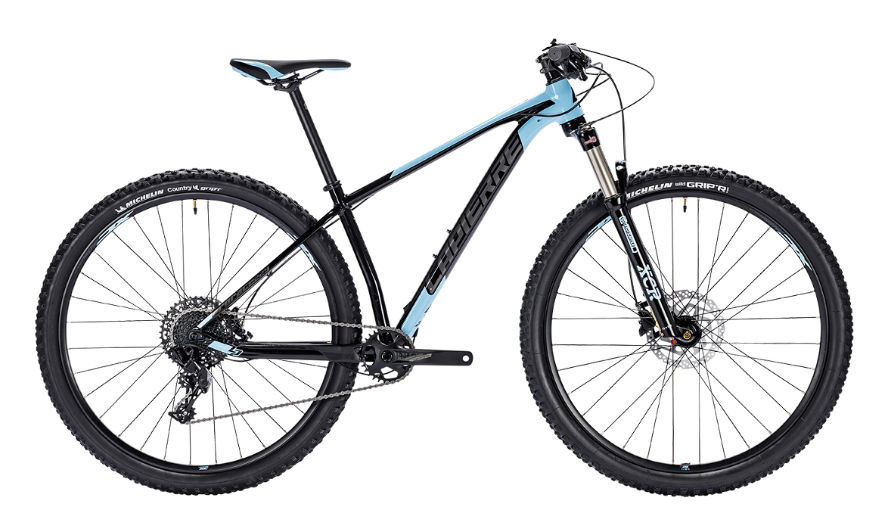

2018 Lapierre ProRace W geometry
Full frame geometry for the 2018 Lapierre ProRace W, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 371 | 73 | 69 | 90 | 550 | 350 | 65 | 428 |
| M | 587 | 401 | 73 | 69.5 | 90 | 580 | 400 | 65 | 428 |
| L | 610 | 424 | 73 | 69.5 | 100 | 610 | 450 | 60 | 428 |
All measurements in millimetres unless marked (°) for angles.
