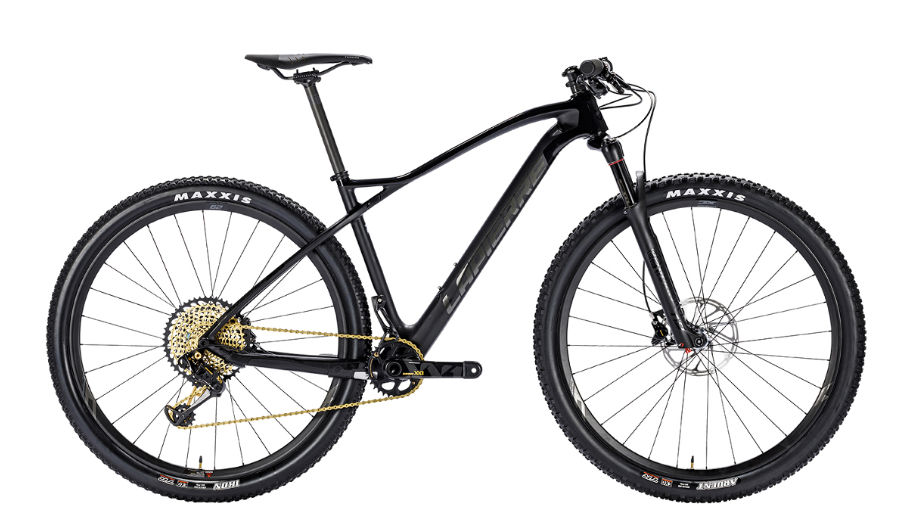

2018 Lapierre ProRace SAT geometry
Full frame geometry for the 2018 Lapierre ProRace SAT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 605 | 415 | 73 | 69.5 | 95 | 600 | 450 | 60 | 428 |
| S | 605 | 390 | 73 | 69.5 | 90 | 575 | 400 | 65 | 428 |
| L | 614 | 437 | 73 | 69.5 | 105 | 625 | 500 | 60 | 428 |
| XL | 628 | 458 | 73 | 69.5 | 120 | 650 | 550 | 60 | 428 |
All measurements in millimetres unless marked (°) for angles.
