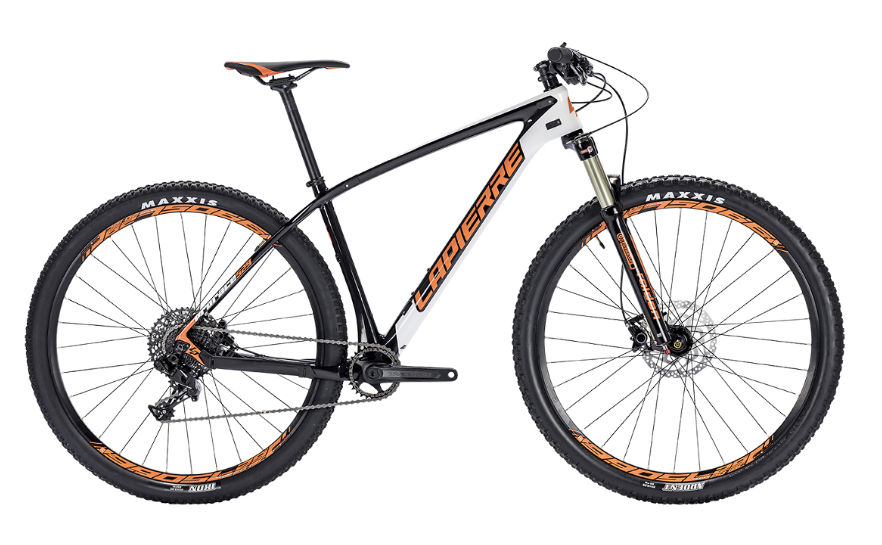

2018 Lapierre ProRace 527/529 geometry
Full frame geometry for the 2018 Lapierre ProRace 527/529, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S (27.5) | 599 | 397 | 73 | 70 | 110 | 580 | 400 | 50 | 420 | 1058 | 42 |
| M (27.5) | 609 | 414 | 73 | 70 | 120 | 600 | 450 | 50 | 420 | 1079 | 42 |
| M (29) | 612 | 413 | 73 | 69 | 100 | 600 | 450 | 65 | 435 | 1108 | 51 |
| L (29) | 621 | 430 | 73 | 69 | 110 | 620 | 500 | 65 | 435 | 1128 | 51 |
All measurements in millimetres unless marked (°) for angles.
