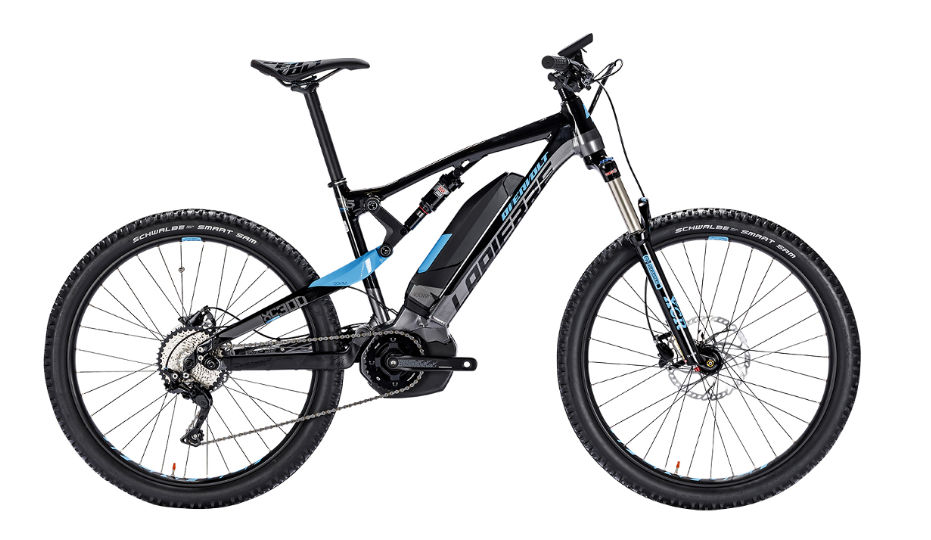

2018 Lapierre Overvolt XC geometry
Full frame geometry for the 2018 Lapierre Overvolt XC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 584 | 396 | 73 | 67 | 120 | 575 | 410 | 5 | 470 |
| M | 594 | 419 | 73 | 67 | 130 | 600 | 440 | 5 | 470 |
| L | 603 | 441 | 73 | 67 | 140 | 625 | 470 | 5 | 470 |
| XL | 612 | 463 | 73 | 67 | 140 | 625 | 510 | 5 | 470 |
All measurements in millimetres unless marked (°) for angles.
