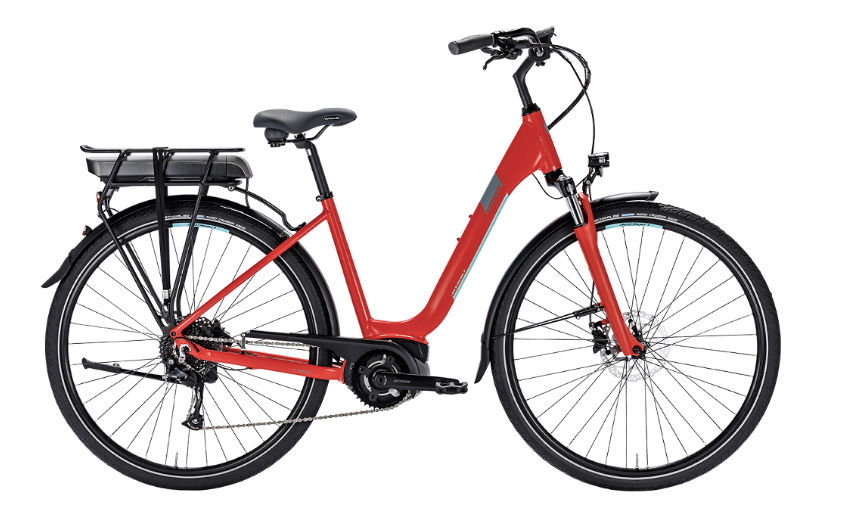

2018 Lapierre Overvolt Urban geometry
Full frame geometry for the 2018 Lapierre Overvolt Urban, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 505 | 401 | 72 | 70 | 150 | 565 | 410 | 45 | 450 |
| M | 516 | 407 | 72.5 | 70.5 | 150 | 570 | 470 | 62 | 467 |
| L | 535 | 418 | 72.5 | 70.5 | 170 | 587 | 530 | 62 | 467 |
All measurements in millimetres unless marked (°) for angles.
