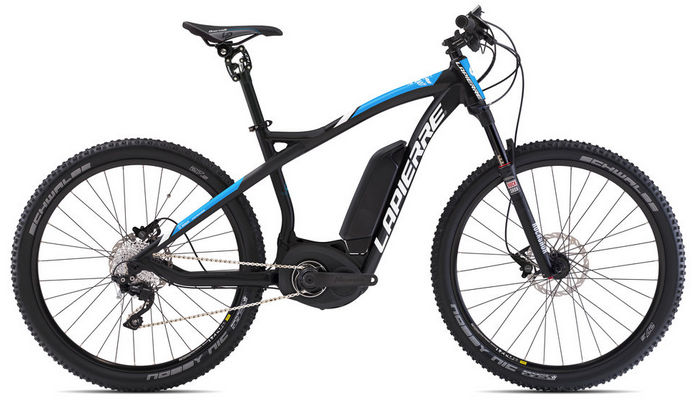

2018 Lapierre Overvolt HT 27 geometry
Full frame geometry for the 2018 Lapierre Overvolt HT 27, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 605 | 379 | 72.5 | 68 | 110 | 570 | 390 | 30 | 475 |
| M | 619 | 405 | 72.5 | 68 | 125 | 600 | 450 | 30 | 475 |
| L | 633 | 425 | 72.5 | 68 | 140 | 625 | 510 | 30 | 475 |
All measurements in millimetres unless marked (°) for angles.
