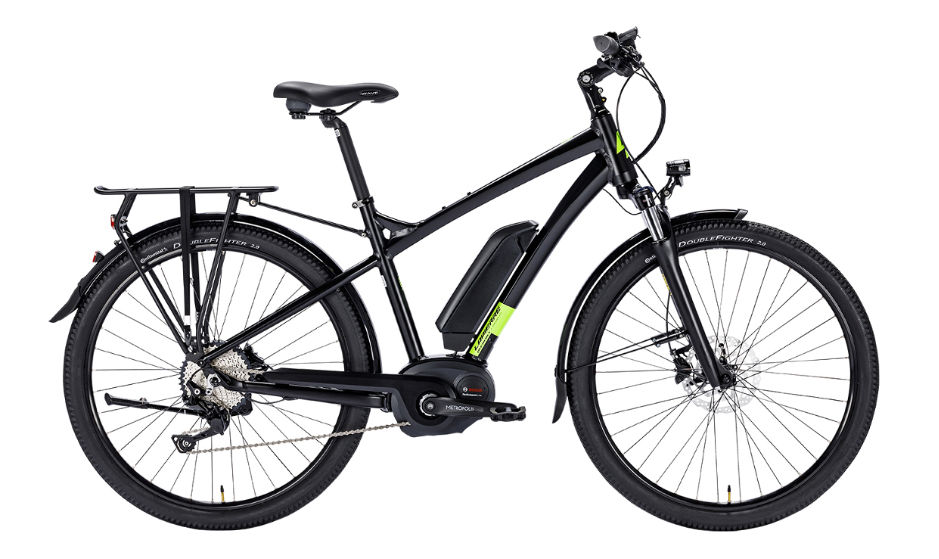

2018 Lapierre Overvolt Explorer geometry
Full frame geometry for the 2018 Lapierre Overvolt Explorer, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 605 | 369 | 72.5 | 70.5 | 130 | 560 | 430 | 57 |
| M | 623 | 383 | 72.5 | 70.5 | 150 | 580 | 470 | 57 |
| L | 644 | 397 | 72.5 | 71 | 170 | 600 | 530 | 57 |
| XL | 675 | 407 | 72.5 | 71.5 | 200 | 620 | 560 | 57 |
All measurements in millimetres unless marked (°) for angles.
