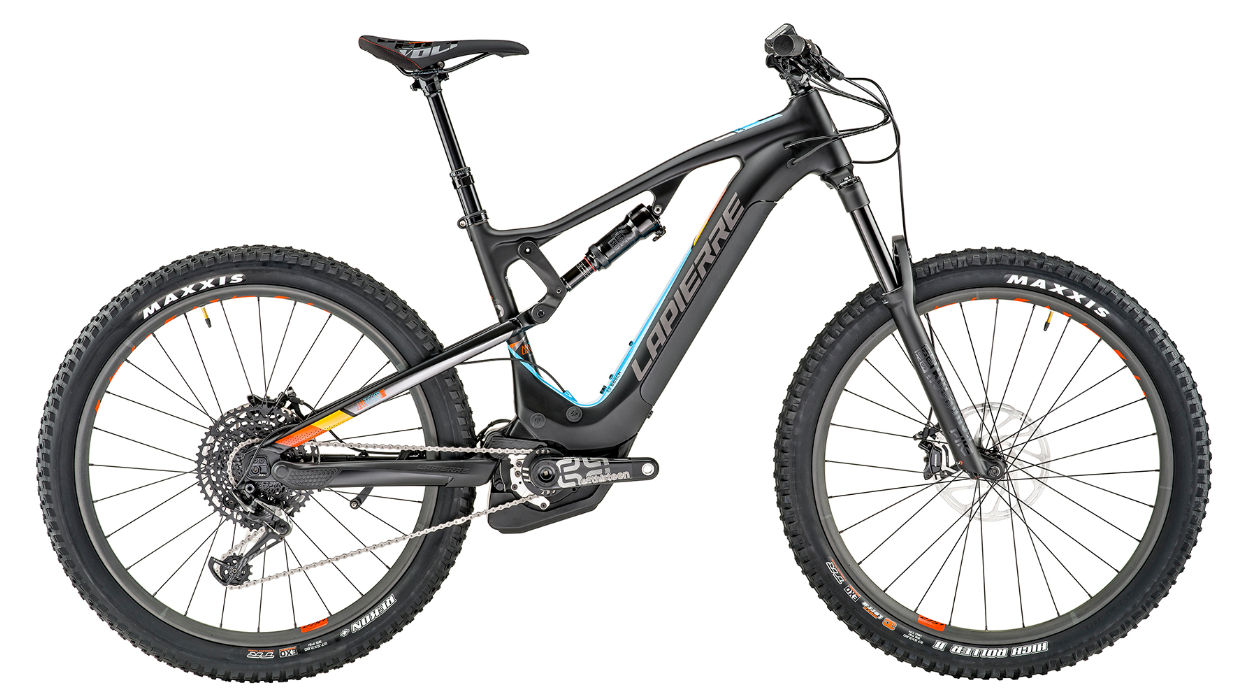

2019 Lapierre Overvolt Ami Bosch Carbon geometry
Full frame geometry for the 2019 Lapierre Overvolt Ami Bosch Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 606 | 395 | 73 | 66 | 120 | 580 | 400 | 5 | 460 |
| M | 616 | 422 | 73 | 66 | 130 | 610 | 430 | 5 | 460 |
| L | 625 | 444 | 73 | 66 | 140 | 635 | 460 | 5 | 460 |
| XL | 634 | 466 | 73 | 66 | 150 | 660 | 500 | 5 | 460 |
All measurements in millimetres unless marked (°) for angles.
