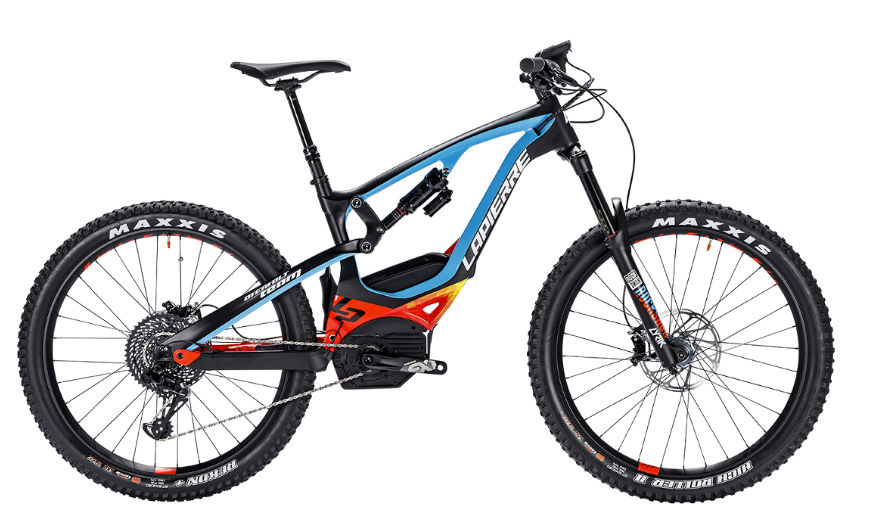

2018 Lapierre Overvolt AM Carbon geometry
Full frame geometry for the 2018 Lapierre Overvolt AM Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 597 | 387 | 73 | 66 | 110 | 570 | 420 | 5 | 475 | 1182 | 51 |
| M | 606 | 415 | 73 | 66 | 120 | 600 | 440 | 5 | 475 | 1213 | 51 |
| L | 616 | 437 | 73 | 66 | 130 | 625 | 480 | 5 | 475 | 1239 | 51 |
All measurements in millimetres unless marked (°) for angles.
