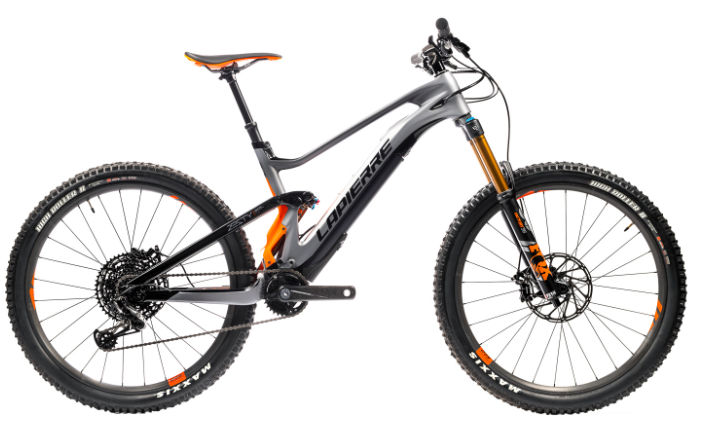

2019 Lapierre eZesty geometry
Full frame geometry for the 2019 Lapierre eZesty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| M | 607 | 443 | 75 | 65.5 | 130 | 606 | 430 | 15 | 435 |
| L | 621 | 470 | 75 | 65.5 | 145 | 636 | 460 | 15 | 435 |
| XL | 635 | 496 | 75 | 65.5 | 160 | 666 | 500 | 15 | 435 |
All measurements in millimetres unless marked (°) for angles.
