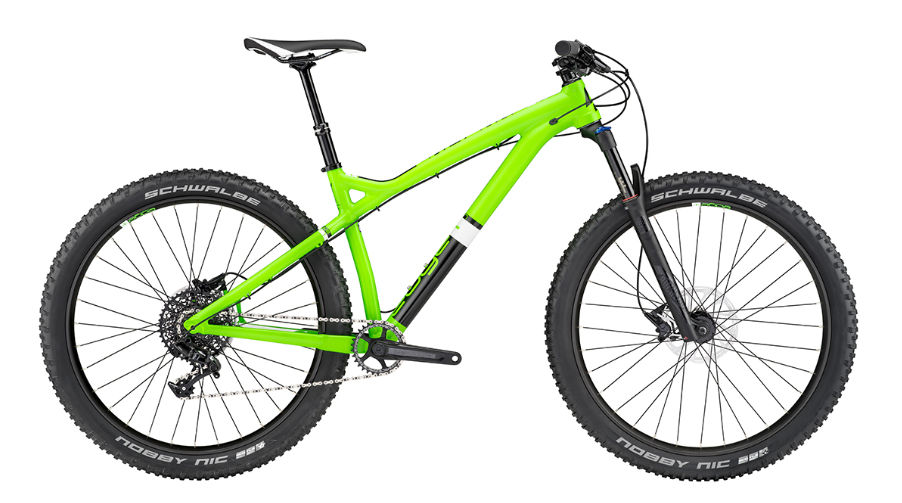

2017 Lapierre EDGE + geometry
Full frame geometry for the 2017 Lapierre EDGE +, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 605 | 442 | 74.5 | 67 | 100 | 610 | 430 | 45 | 420 | 1153 | 51 |
| S | 605 | 417 | 74.5 | 67 | 100 | 585 | 390 | 45 | 420 | 1128 | 51 |
| L | 614 | 460 | 74.5 | 67 | 110 | 630 | 460 | 45 | 420 | 1174 | 51 |
| XL | 623 | 482 | 74.5 | 67 | 120 | 655 | 500 | 45 | 420 | 1201 | 51 |
All measurements in millimetres unless marked (°) for angles.
