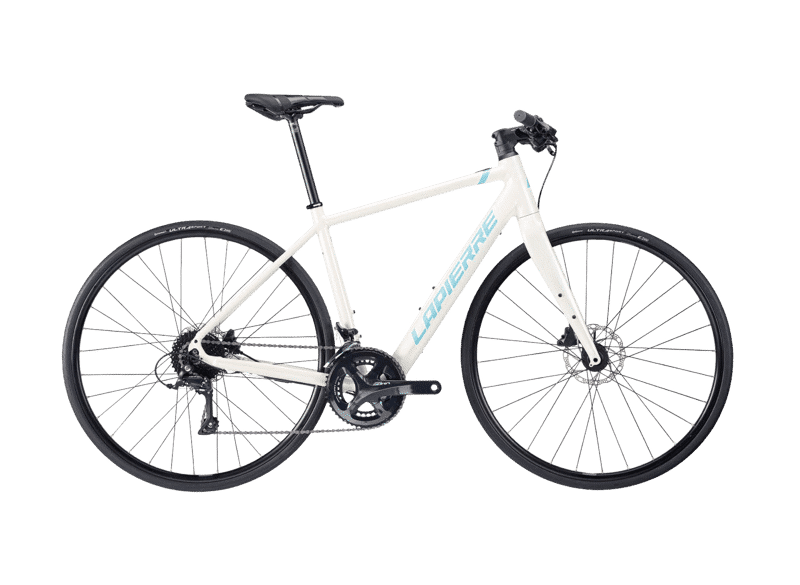

2023 Lapierre e-Sensium 2.2 Women 2023 geometry
Full frame geometry for the 2023 Lapierre e-Sensium 2.2 Women 2023, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 564 | 362 | 74.5 | 70.5 | 135 | 518 | 440 | -75 | 425 |
| M | 585 | 362 | 74 | 71 | 155 | 530 | 480 | -75 | 425 |
| L | 610 | 364 | 73.5 | 71.5 | 180 | 545 | 520 | -75 | 425 |
All measurements in millimetres unless marked (°) for angles.
