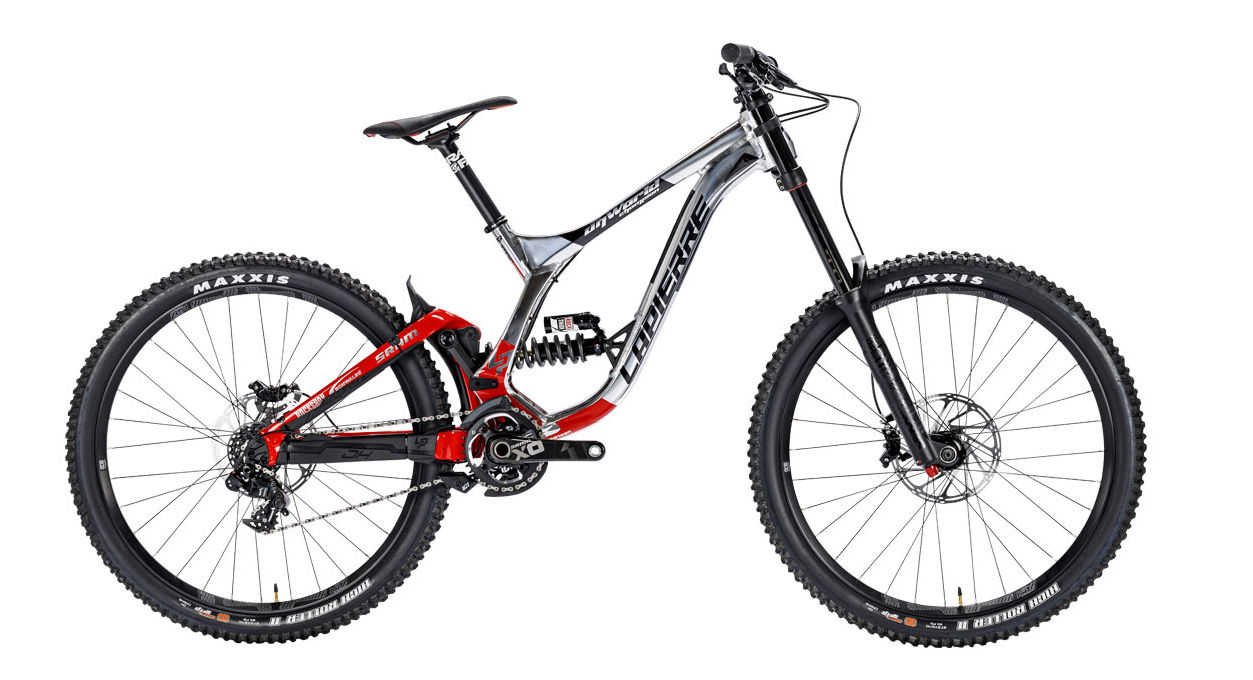

2017 Lapierre DH geometry
Full frame geometry for the 2017 Lapierre DH, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | 607 | 454 | 73 | 63.7 | 115 | 640 | 400 | 5 | 445 | 1252 | 45 |
| M | 607 | 434 | 73 | 63.7 | 115 | 620 | 400 | 5 | 445 | 1232 | 45 |
| S | 607 | 414 | 73 | 63.7 | 115 | 600 | 400 | 5 | 445 | 1212 | 45 |
All measurements in millimetres unless marked (°) for angles.
