2021 Lapierre · G

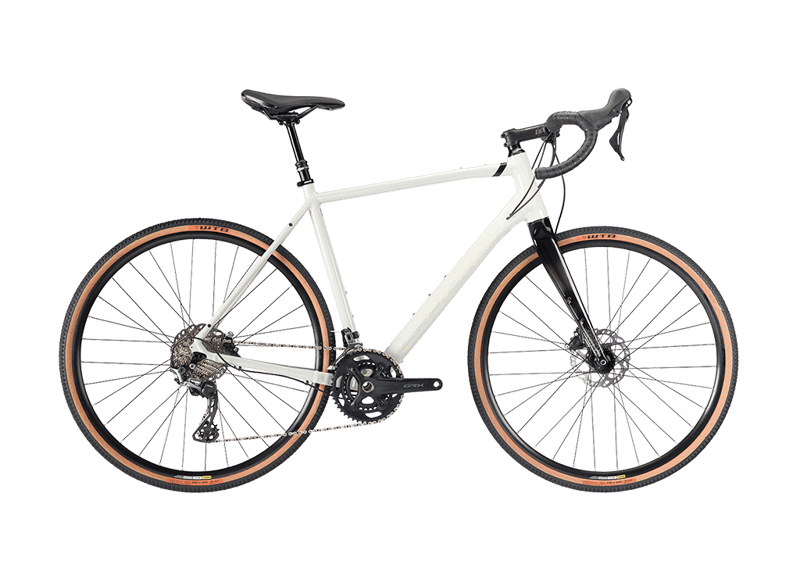

2021 Lapierre Crosshill Series geometry
Full frame geometry for the 2021 Lapierre Crosshill Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 366 | 70 | 73 | 90 | 525 | 420 | 75 | 435 |
| S | 547 | 376 | 70.5 | 73 | 120 | 544 | 460 | 75 | 435 |
| M | 577 | 378 | 71 | 72.5 | 150 | 561 | 500 | 75 | 435 |
| L | 605 | 388 | 71 | 72.5 | 180 | 579 | 550 | 75 | 435 |
| XL | 636 | 389 | 71.5 | 72 | 210 | 596 | 600 | 75 | 435 |
All measurements in millimetres unless marked (°) for angles.
