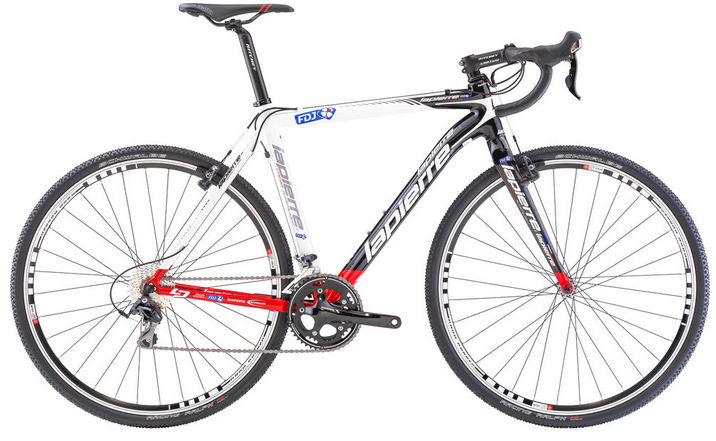

2013 Lapierre Cross Alloy geometry
Full frame geometry for the 2013 Lapierre Cross Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 491 | 384 | 74.5 | 71 | 100 | 520 | 500 | 62 | 425 | 45 |
| M | 531 | 388 | 74 | 71.5 | 140 | 540 | 540 | 62 | 425 | 45 |
| L | 552 | 397 | 73.5 | 72 | 160 | 560 | 570 | 62 | 425 | 45 |
| XL | 573 | 405 | 73 | 72.5 | 180 | 580 | 600 | 62 | 425 | 45 |
All measurements in millimetres unless marked (°) for angles.
