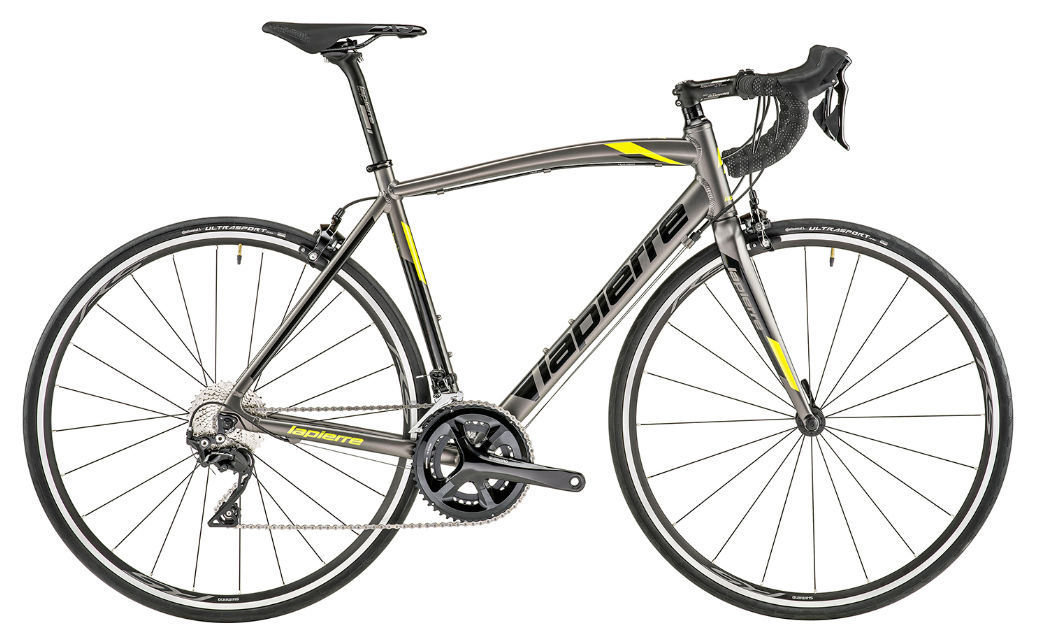

2017 Lapierre Audacio MKII geometry
Full frame geometry for the 2017 Lapierre Audacio MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 518 | 376 | 74.5 | 71.5 | 120 | 520 | 460 | 68 | 412 | 979 | 43 |
| S | 538 | 378 | 74 | 72 | 140 | 532 | 490 | 68 | 412 | 982 | 43 |
| M | 559 | 376 | 73 | 72.5 | 160 | 547 | 520 | 68 | 412 | 982 | 43 |
| L | 580 | 382 | 72.5 | 73 | 180 | 565 | 550 | 68 | 412 | 990 | 43 |
| XL | 601 | 390 | 72 | 73.5 | 200 | 585 | 580 | 68 | 412 | 999 | 43 |
| XXL | 618 | 399 | 72 | 73 | 220 | 600 | 610 | 68 | 412 | 1019 | 43 |
All measurements in millimetres unless marked (°) for angles.
