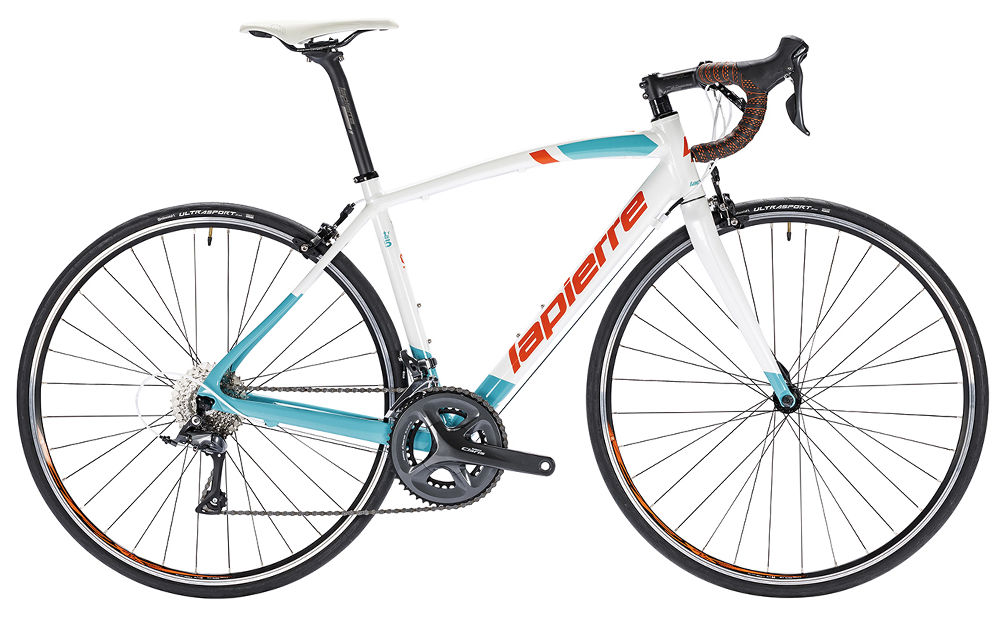

2017 Lapierre Audacio Lady MKII geometry
Full frame geometry for the 2017 Lapierre Audacio Lady MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 528 | 369 | 74.5 | 71 | 125 | 515 | 440 | 75 | 412 | 975 | 43 |
| M | 549 | 373 | 74 | 71.5 | 145 | 530 | 480 | 75 | 412 | 981 | 43 |
| L | 574 | 375 | 73.5 | 72 | 170 | 545 | 520 | 75 | 412 | 987 | 43 |
All measurements in millimetres unless marked (°) for angles.
