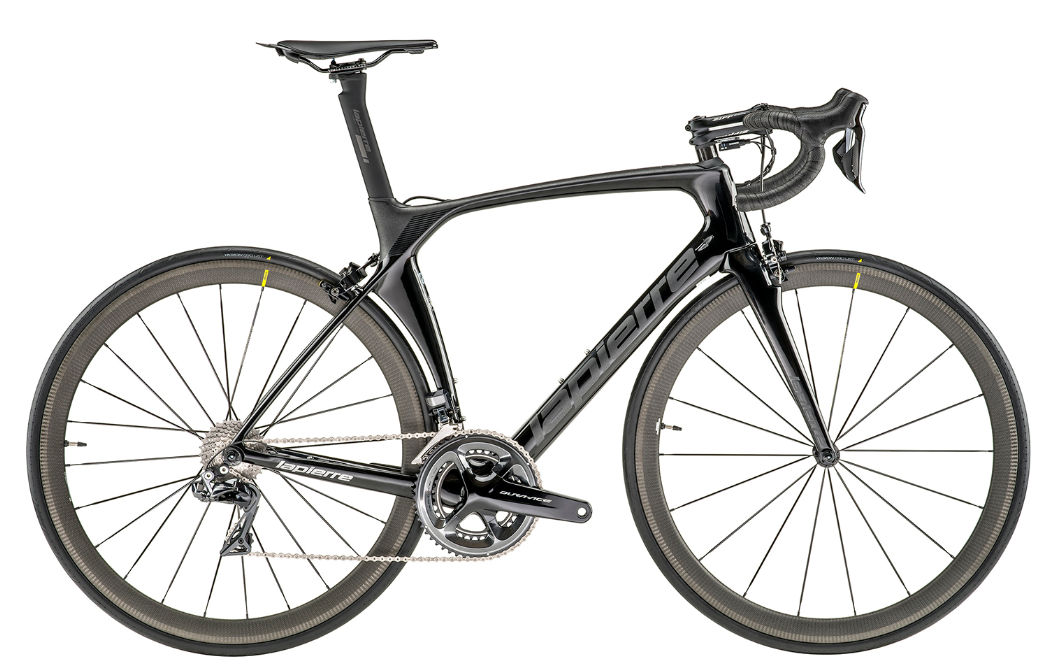

2018 Lapierre Aircode SL geometry
Full frame geometry for the 2018 Lapierre Aircode SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 504 | 375 | 74 | 72 | 105 | 520 | 67 | 405 |
| S | 519 | 376 | 73 | 72 | 120 | 535 | 67 | 405 |
| M | 541 | 385 | 73 | 73 | 140 | 550 | 67 | 405 |
| L | 560 | 393 | 72.5 | 73 | 160 | 570 | 67 | 405 |
| XL | 583 | 401 | 72 | 74 | 180 | 590 | 67 | 405 |
All measurements in millimetres unless marked (°) for angles.
