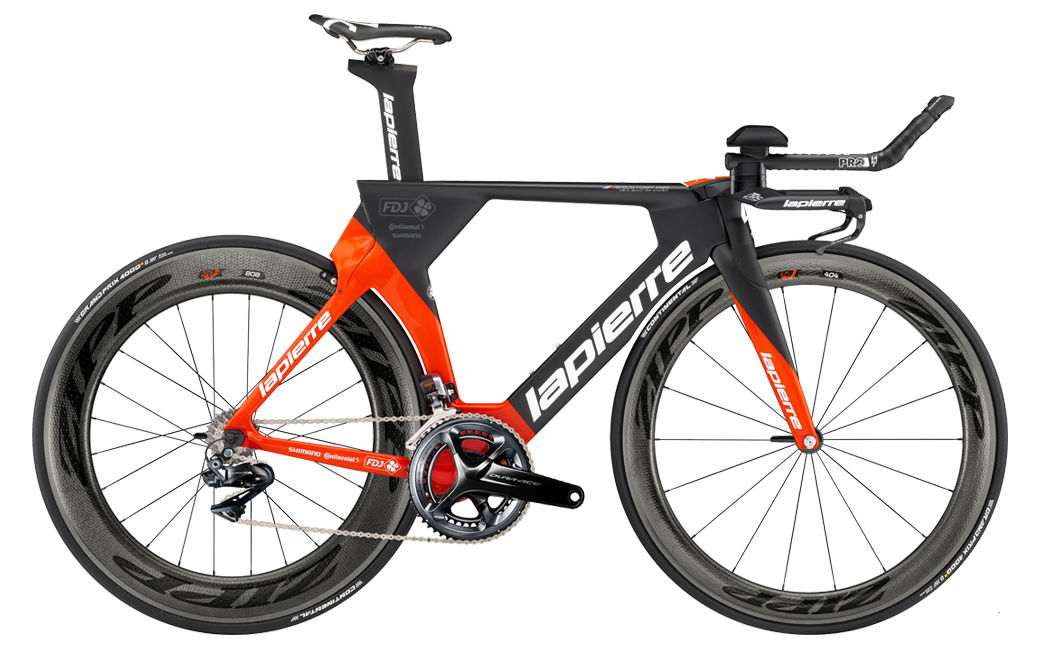

2018 Lapierre Aerostorm geometry
Full frame geometry for the 2018 Lapierre Aerostorm, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|
| S | 470 | 380 | 76 | 72 | 67 | 497 | 484 | 68 | 405 |
| M | 490 | 395 | 75.5 | 72.5 | 87 | 522 | 506 | 68 | 405 |
| L | 510 | 410 | 75 | 72.5 | 108 | 547 | 528 | 68 | 405 |
All measurements in millimetres unless marked (°) for angles.
