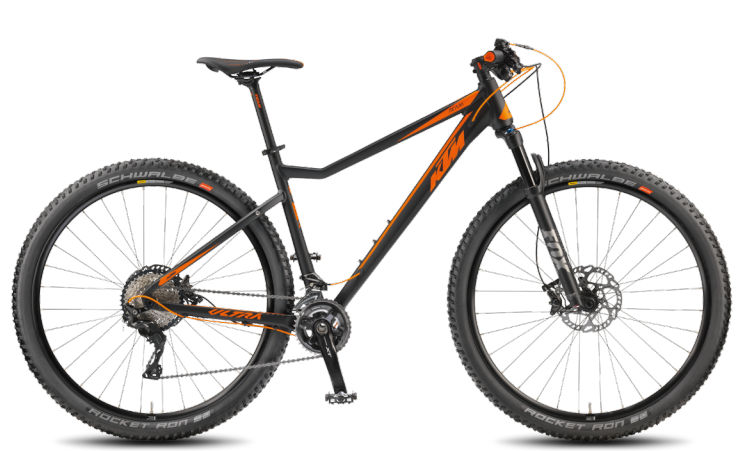

2018 KTM Ultra 29 geometry
Full frame geometry for the 2018 KTM Ultra 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 599 | 405 | 75 | 71 | 95 | 565 | 733 | 70 | 445 | 1080 |
| 43 | 613 | 421 | 75 | 71 | 110 | 585 | 759 | 70 | 445 | 1101 |
| 48 | 627 | 437 | 75 | 71 | 125 | 605 | 789 | 70 | 445 | 1122 |
| 53 | 642 | 453 | 75 | 71 | 140 | 625 | 820 | 70 | 445 | 1143 |
| 57 | 660 | 468 | 75 | 71 | 160 | 645 | 849 | 70 | 445 | 1165 |
All measurements in millimetres unless marked (°) for angles.
