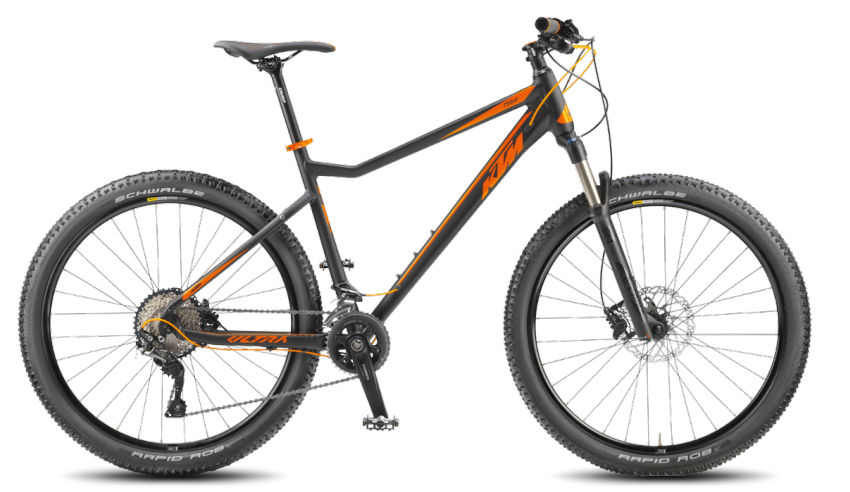

2018 KTM Ultra 27 geometry
Full frame geometry for the 2018 KTM Ultra 27, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 579 | 399 | 74 | 70 | 110 | 565 | 724 | 50 | 435 | 1068 |
| 43 | 593 | 415 | 74 | 70 | 125 | 585 | 750 | 50 | 435 | 1089 |
| 48 | 607 | 431 | 74 | 70 | 140 | 605 | 780 | 50 | 435 | 1110 |
| 53 | 626 | 446 | 74 | 70 | 160 | 625 | 813 | 50 | 435 | 1132 |
| 57 | 645 | 460 | 74 | 70 | 180 | 645 | 841 | 50 | 435 | 1153 |
All measurements in millimetres unless marked (°) for angles.
