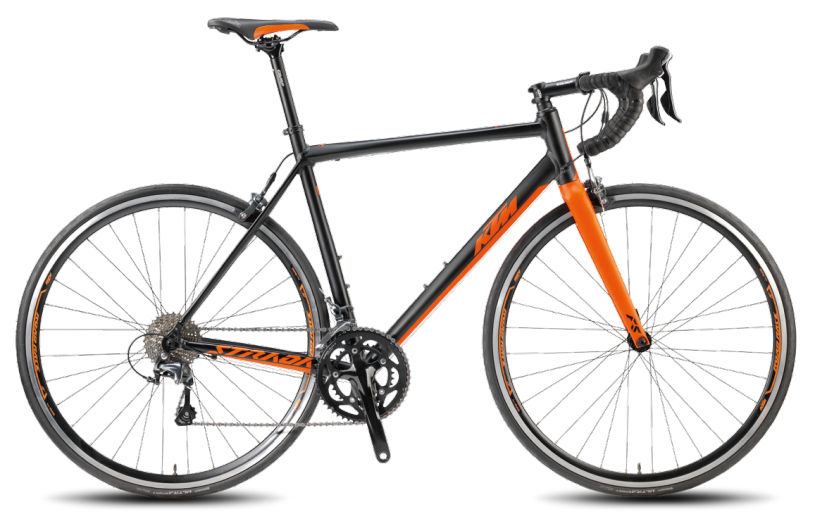

2018 KTM Strada 1000 geometry
Full frame geometry for the 2018 KTM Strada 1000, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 534 | 366 | 75 | 72 | 130 | 509 | 734 | 72 | 410 | 965 |
| 52 | 551 | 381 | 75 | 72.5 | 145 | 529 | 757 | 72 | 410 | 981 |
| 55 | 565 | 393 | 74.5 | 72.5 | 160 | 550 | 779 | 72 | 410 | 997 |
| 57 | 580 | 387 | 73.5 | 73 | 175 | 561 | 796 | 70 | 412 | 996 |
| 59 | 601 | 394 | 73.5 | 73 | 200 | 572 | 819 | 68 | 412 | 1008 |
All measurements in millimetres unless marked (°) for angles.
