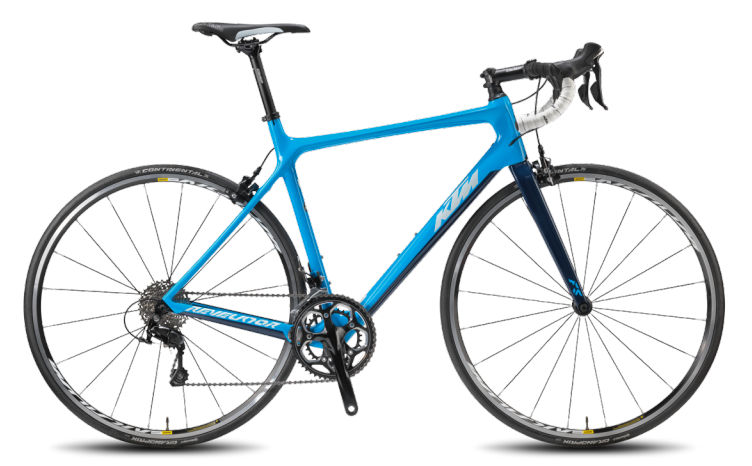

2018 KTM Revelator geometry
Full frame geometry for the 2018 KTM Revelator, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 551 | 381 | 74 | 72.5 | 146 | 529 | 747 | 72 | 405 | 976 |
| 55 | 565 | 393 | 73.5 | 72.5 | 160 | 550 | 768 | 72 | 405 | 992 |
| 57 | 580 | 389 | 77.2 | 73 | 175 | 561 | 785 | 70 | 405 | 989 |
| 59 | 601 | 394 | 72.5 | 73 | 200 | 572 | 807 | 68 | 405 | 1001 |
All measurements in millimetres unless marked (°) for angles.
