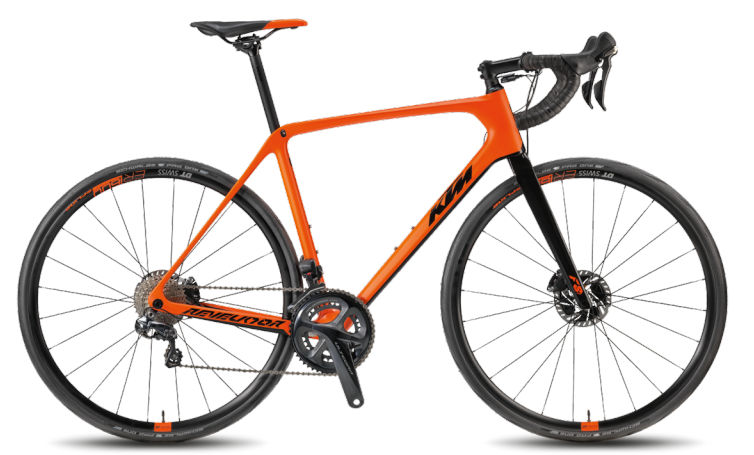

2018 KTM Revelator Sky geometry
Full frame geometry for the 2018 KTM Revelator Sky, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 558 | 380 | 75 | 71.5 | 145 | 530 | 777 | 72 | 415 | 997 |
| 55 | 572 | 391 | 74.5 | 71.5 | 160 | 550 | 797 | 72 | 415 | 1013 |
| 57 | 582 | 396 | 74 | 72 | 170 | 563 | 813 | 70 | 415 | 1017 |
| 59 | 594 | 400 | 73.5 | 72 | 185 | 576 | 830 | 68 | 415 | 1026 |
All measurements in millimetres unless marked (°) for angles.
