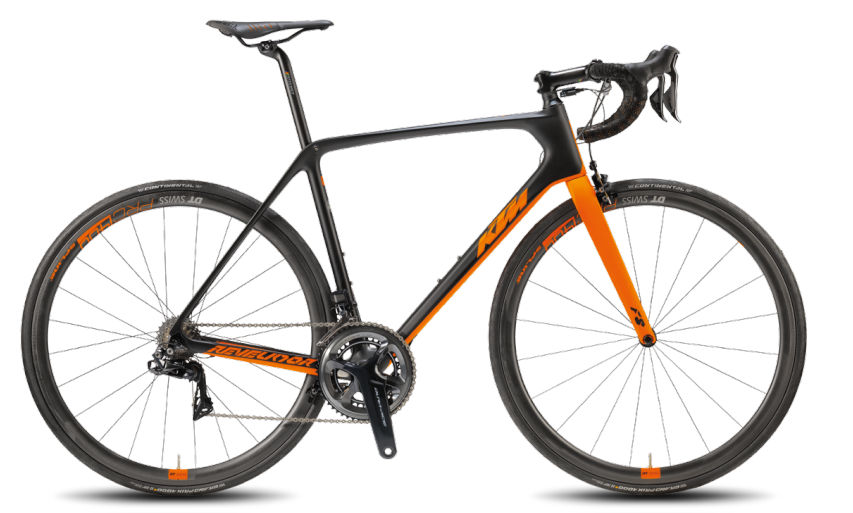

2018 KTM Revelator Prestige/Master geometry
Full frame geometry for the 2018 KTM Revelator Prestige/Master, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 52 | 551 | 390 | 76 | 72.5 | 145 | 528 | 774 | 72 | 405 | 985 |
| 55 | 565 | 401 | 75.5 | 72.5 | 160 | 547 | 795 | 72 | 405 | 1000 |
| 57 | 575 | 406 | 75 | 73 | 170 | 560 | 811 | 70 | 405 | 1004 |
| 59 | 587 | 410 | 74.5 | 73 | 185 | 573 | 828 | 68 | 405 | 1013 |
All measurements in millimetres unless marked (°) for angles.
