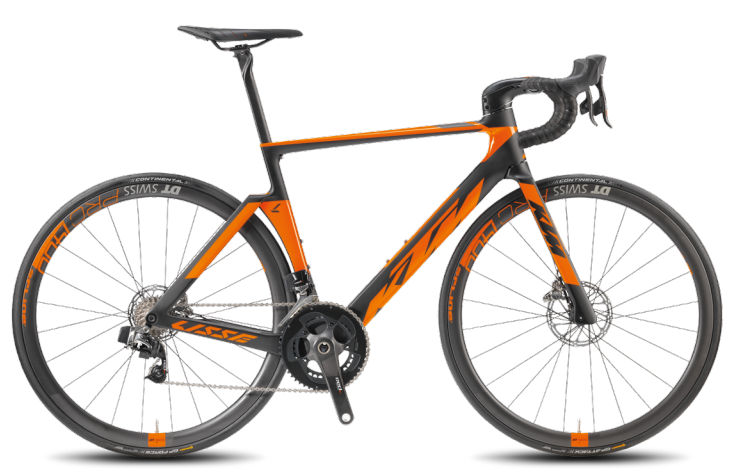

2019 KTM Revelator Lisse geometry
Full frame geometry for the 2019 KTM Revelator Lisse, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 526 | 386 | 76 | 72 | 100 | 517 | 733 | 72 | 410 | 982 |
| 52 | 542 | 402 | 76 | 72.5 | 115 | 537 | 755 | 72 | 410 | 999 |
| 55 | 556 | 413 | 75.5 | 72.5 | 130 | 557 | 777 | 72 | 410 | 1014 |
| 57 | 565 | 419 | 75 | 73 | 140 | 570 | 793 | 70 | 410 | 1019 |
| 59 | 576 | 423 | 74.5 | 73 | 155 | 583 | 810 | 68 | 410 | 1028 |
All measurements in millimetres unless marked (°) for angles.
