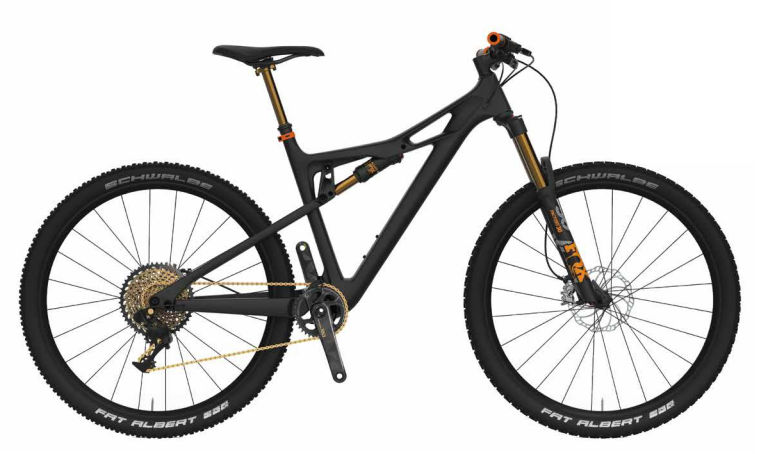

2018 KTM Prowler Sonic geometry
Full frame geometry for the 2018 KTM Prowler Sonic, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| 43 | 606 | 445 | 76.5 | 66.5 | 90 | 590 | 30 | 436 | 1163 |
| 48 | 620 | 461 | 76.5 | 66.5 | 105 | 610 | 30 | 436 | 1186 |
| 53 | 634 | 488 | 76.5 | 66.5 | 120 | 630 | 30 | 436 | 1208 |
All measurements in millimetres unless marked (°) for angles.
