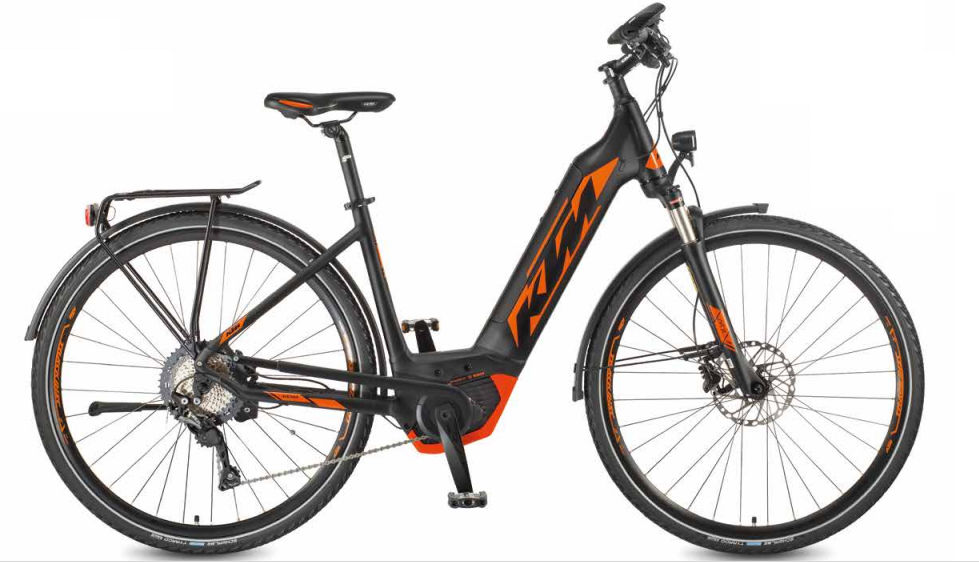

2018 KTM Macina Sport Step Thru geometry
Full frame geometry for the 2018 KTM Macina Sport Step Thru, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 625 | 382 | 71 | 70 | 160 | 596 | 419 | 60 | 492 | 1104 |
| 51 | 638 | 387 | 71 | 70 | 174 | 605 | 419 | 60 | 492 | 1114 |
| 56 | 659 | 400 | 71 | 70 | 190 | 620 | 419 | 60 | 492 | 1131 |
All measurements in millimetres unless marked (°) for angles.
