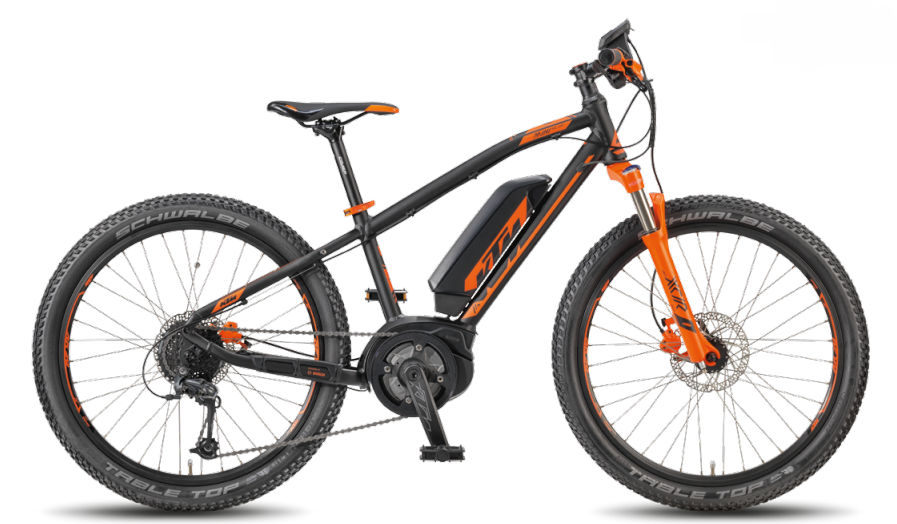

2018 KTM Macina Mini Me geometry
Full frame geometry for the 2018 KTM Macina Mini Me, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 34 | 518 | 366 | 72.5 | 70 | 120 | 529 | 677 | 40 | 432 | 1016 |
All measurements in millimetres unless marked (°) for angles.
