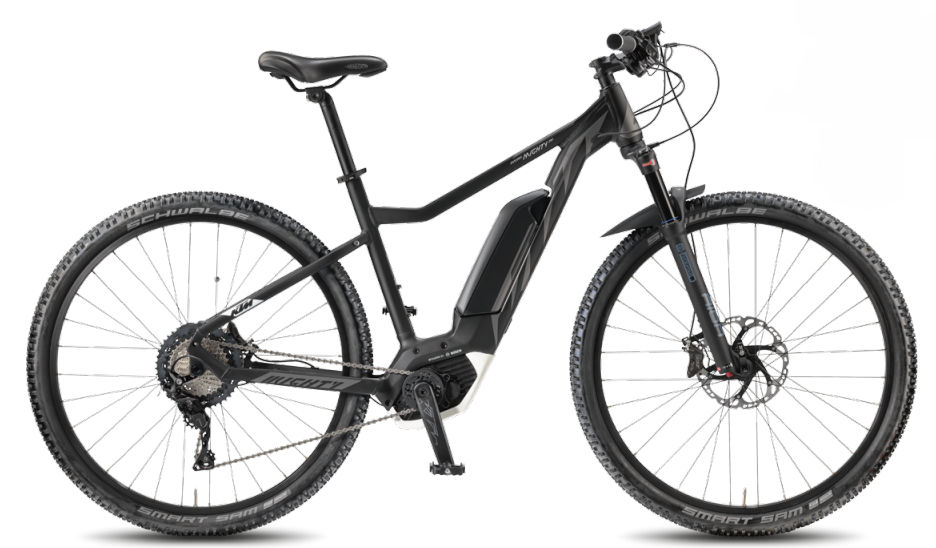

2018 KTM Macina Mighty geometry
Full frame geometry for the 2018 KTM Macina Mighty, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 618 | 400 | 73 | 70.5 | 120 | 575 | 791 | 62 | 497 | 1132 |
| 48 | 625 | 416 | 73 | 71 | 125 | 589 | 818 | 62 | 497 | 1145 |
| 53 | 636 | 431 | 73 | 71 | 137 | 600 | 847 | 62 | 497 | 1164 |
| 57 | 648 | 445 | 73 | 71 | 150 | 643 | 872 | 62 | 497 | 1182 |
All measurements in millimetres unless marked (°) for angles.
