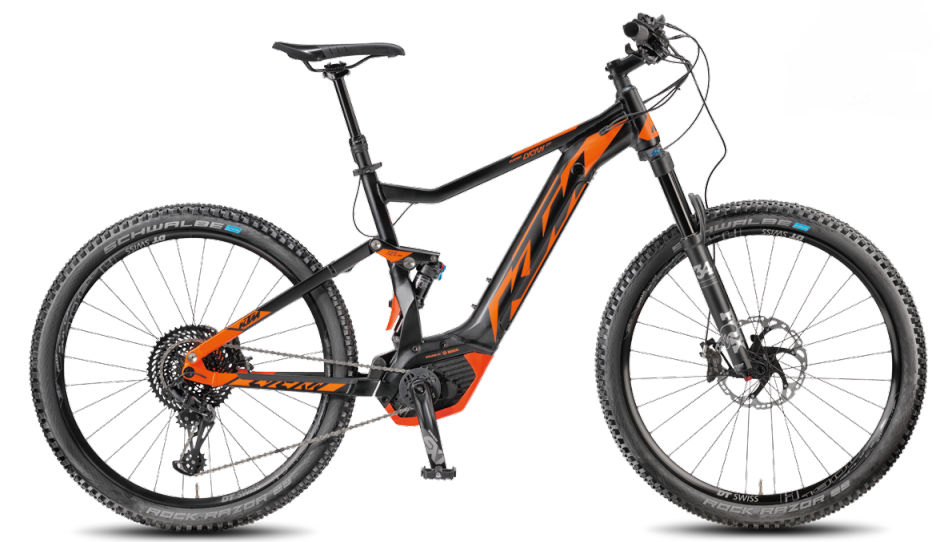

2018 KTM Macina Lycan geometry
Full frame geometry for the 2018 KTM Macina Lycan, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 41 | 625 | 392 | 74.5 | 68 | 120 | 557 | 791 | 35 | 486 | 1163 |
| 43 | 625 | 412 | 74.5 | 68 | 120 | 567 | 790 | 35 | 486 | 1183 |
| 48 | 629 | 431 | 74.5 | 68 | 125 | 583 | 811 | 35 | 486 | 1203 |
| 53 | 640 | 447 | 74.5 | 68 | 137 | 602 | 840 | 35 | 486 | 1225 |
All measurements in millimetres unless marked (°) for angles.
