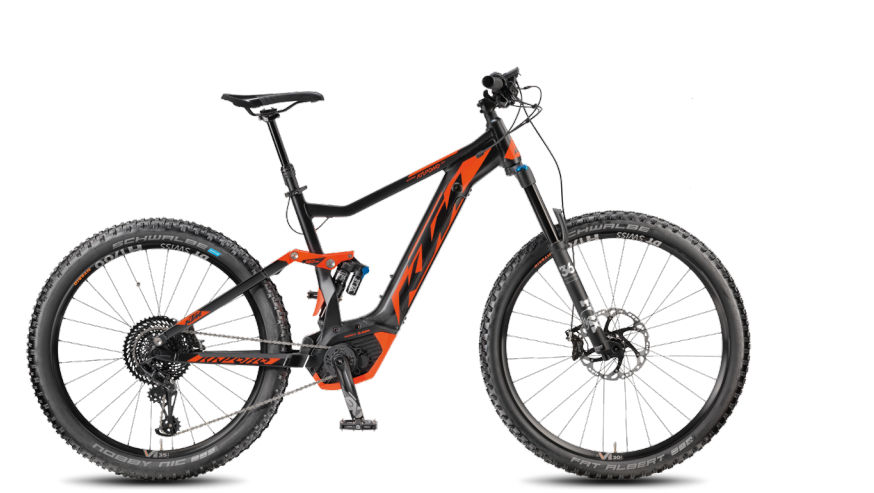

2018 KTM Macina Kapoho geometry
Full frame geometry for the 2018 KTM Macina Kapoho, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 41 | 629 | 388 | 74.5 | 66 | 120 | 565 | 818 | 12 | 498 | 1201 |
| 48 | 634 | 425 | 74.5 | 66 | 125 | 605 | 841 | 12 | 498 | 1242 |
| 43 | 643 | 402 | 74.5 | 66 | 120 | 585 | 813 | 12 | 498 | 1221 |
| 53 | 645 | 442 | 74.5 | 66 | 137 | 625 | 869 | 12 | 498 | 1263 |
All measurements in millimetres unless marked (°) for angles.
