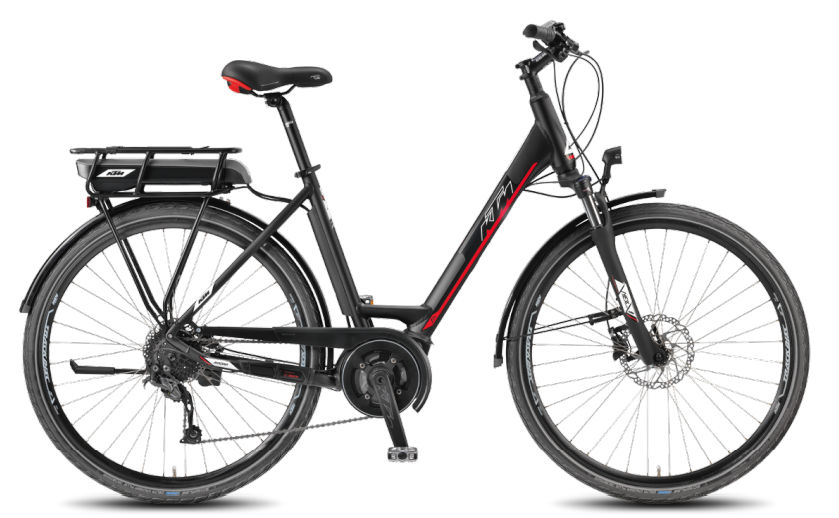

2018 KTM Macina Joy geometry
Full frame geometry for the 2018 KTM Macina Joy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 624 | 382 | 71.5 | 70 | 160 | 590 | 452 | 60 | 482 | 1116 |
| 51 | 637 | 387 | 71.5 | 70 | 174 | 600 | 452 | 60 | 482 | 1129 |
| 56 | 652 | 402 | 71.5 | 70 | 190 | 620 | 452 | 60 | 482 | 1147 |
All measurements in millimetres unless marked (°) for angles.
