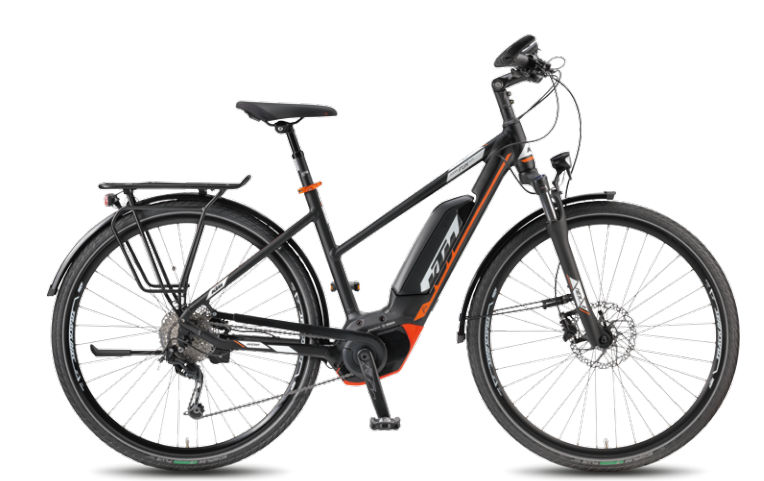

2018 KTM Macina Fun Lady geometry
Full frame geometry for the 2018 KTM Macina Fun Lady, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 584 | 396 | 73 | 71 | 120 | 575 | 708 | 55 | 463 | 1082 |
| 51 | 601 | 405 | 73 | 71 | 137 | 588 | 710 | 55 | 463 | 1096 |
| 56 | 618 | 411 | 73 | 71 | 155 | 599 | 741 | 55 | 463 | 1108 |
All measurements in millimetres unless marked (°) for angles.
