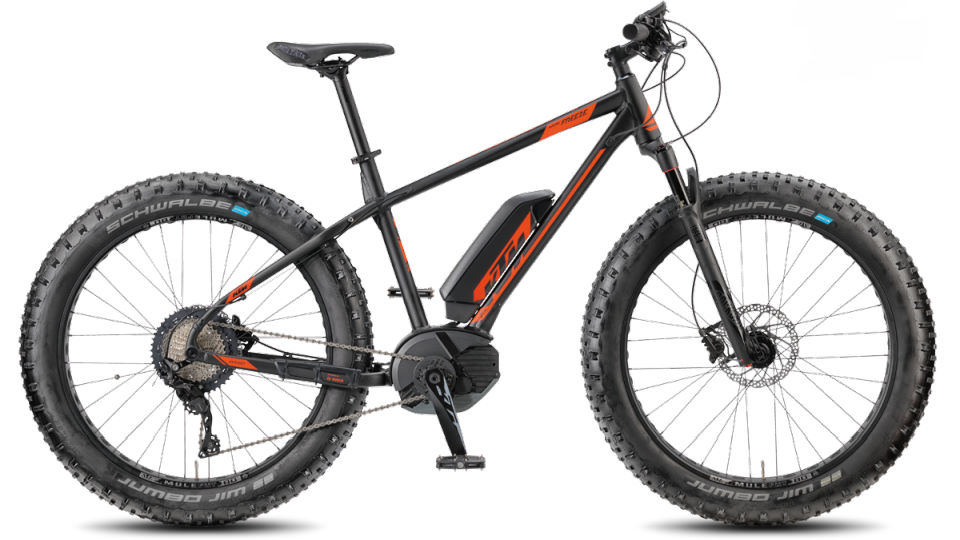

2018 KTM Macina Freeze geometry
Full frame geometry for the 2018 KTM Macina Freeze, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 597 | 392 | 73 | 69 | 125 | 574 | 776 | 55 | 500 | 1148 |
| 48 | 608 | 408 | 73 | 69 | 137 | 594 | 795 | 55 | 500 | 1168 |
| 53 | 620 | 422 | 73 | 69 | 150 | 612 | 825 | 55 | 500 | 1187 |
All measurements in millimetres unless marked (°) for angles.
